Compressed Earth Block: Reviving Tradition with Modern Innovation
For thousands of years, earth has been used as a primary building material,
offering a durable solution for builders across diverse cultures and climates.
Compressed Earth Blocks (CEBs) bring a modern twist to this ancient tradition by using machine-pressing techniques to create sturdy building blocks.
Sometimes, small amounts of cement or lime are added to help the blocks maintain their structural integrity, especially when exposed to moisture or subjected to freeze/thaw cycles.
This approach aligns perfectly with modern masonry practices, providing a sustainable and durable alternative to conventional building materials.
Whether used for their thermal regulation, durability, or their ability to create striking, natural designs, earth blocks are a time-tested material with enduring appeal.
_________________________________
Like other earth-based building materials such as adobe, cob, and rammed earth, pressed earth blocks provide structural strength, thermal mass, and a connection to the earth that few materials can match. Their use of local soils makes them versatile and regionally adaptable, while their strength and aesthetic flexibility make them a valuable choice in today’s construction landscape.

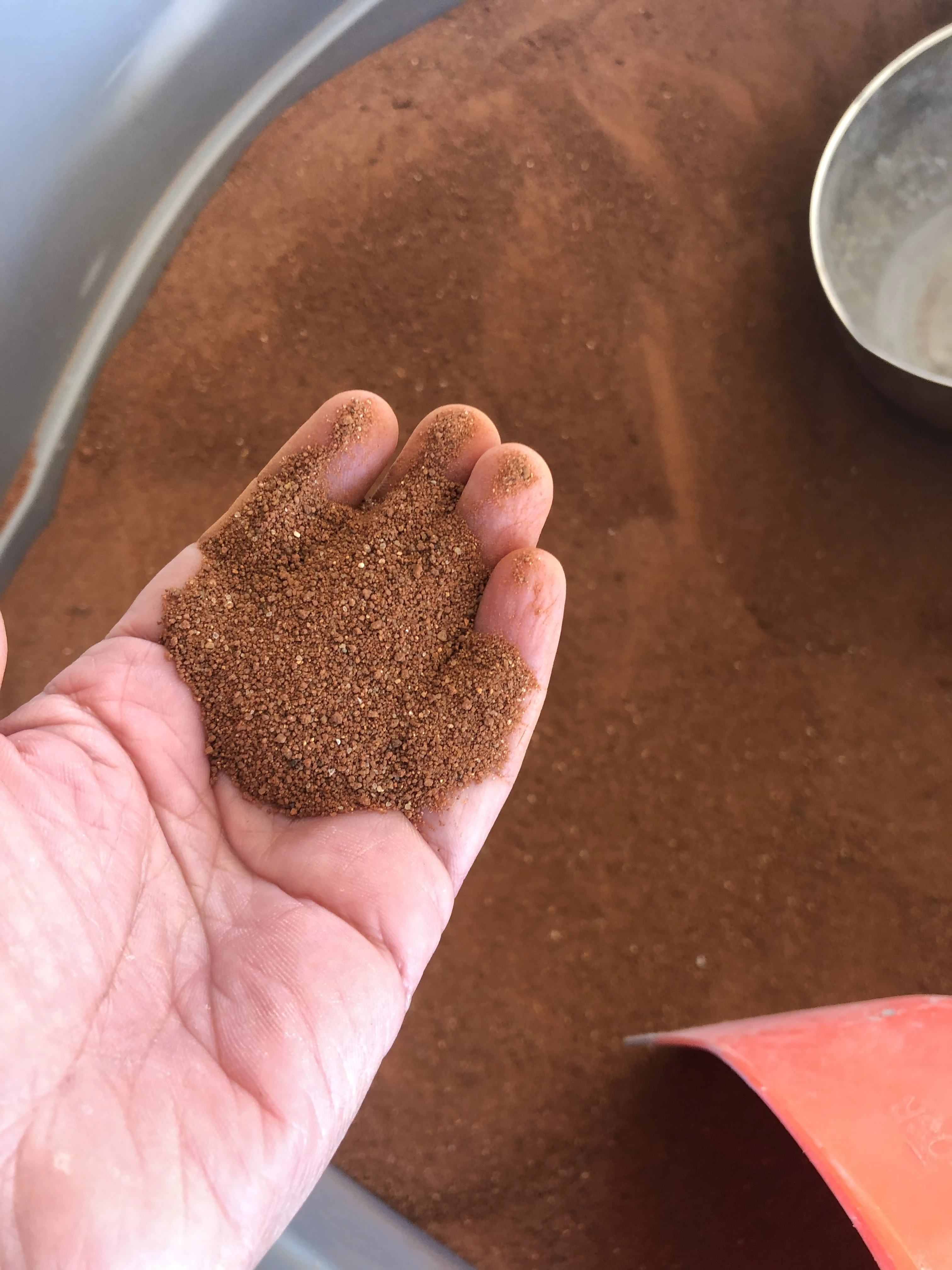

Soil Composition and Customization
The International Building Code (IBC) doesn’t specifically call out compressed earth blocks (CEBs), but it does cover adobe, including guidelines for soil composition and stabilization. Since CEBs share similar earthen material properties, these adobe requirements can often apply to CEBs as well.
- Unstabilized: The IBC says that unstabilized adobe should be made from natural materials like sand, silt, and clay, with enough clay (usually 15-30%) to hold the blocks together without needing chemical stabilizers. It's key to leave out any topsoil, as that can break down over time and weaken the structure. (IBC Section 2109)
- Stabilized: The IBC allows adding cement or lime to improve water resistance and durability, with specific amounts depending on soil composition and local codes. Stabilized blocks need to be properly cured, meet strength requirements, and are especially recommended for wetter climates or places with periodic freeze/thaw conditions. (IBC Section 2109)
- Soluble Salts in Adobe:
The IBC requires that both stabilized and unstabilized earth blocks be low in soluble salts to avoid efflorescence, which can weaken the structure. Engineers often suggest keeping soluble salts below 2%. The most common test for this is the water-soluble salts test, where a soil sample is mixed with distilled water, filtered, and then checked for salt concentration.
(IBC Section 2109)
-
Water Content:
When pressing compressed earth blocks (CEBs), a water content of about 8% by weight is ideal for getting the best compaction. This moisture level helps form stable blocks, which are then left to dry completely before use in construction. For consistency and accuracy, it's important to measure all materials - soil, water, and stabilizers - by weight.
- Soil Sourcing: When suitable on-site soil isn’t available, overburden fines from local quarries provide a practical alternative. Often considered waste in other industries, these fines can be repurposed to create high-quality earth blocks, reducing transportation costs, minimizing environmental impact, and supporting local economies.
- Cob Blocks and the Role of Straw: In addition to compressed earth blocks, cob also offers a flexible, earthen material option. Cob, a mix of soil, sand, clay, and straw, is a traditional building material known for its strength and durability. The straw helps reinforce the blocks by adding tensile strength and stability, preventing breakdown as long as the wall stays dry. Unlike organic topsoil, which can degrade, straw helps bind the soil particles, creating a resilient block. (IRC Appendix AU).
- Testing for Compliance: Compressed earth blocks (CEBs), adobe, and cob should meet engineering specs and code requirements, like those in the IBC for adobe and IRC Appendix AU for cob. These can include tests for compression strength (to handle structural loads), water absorption and erosion resistance (to withstand moisture and weathering), modulus of rupture (for bending strength), and drying shrinkage (to prevent cracking as materials cure). Each material may have different test thresholds, so consulting with an engineer helps ensure that the blocks meet all safety and durability standards for the project.
Compression Process and Technology

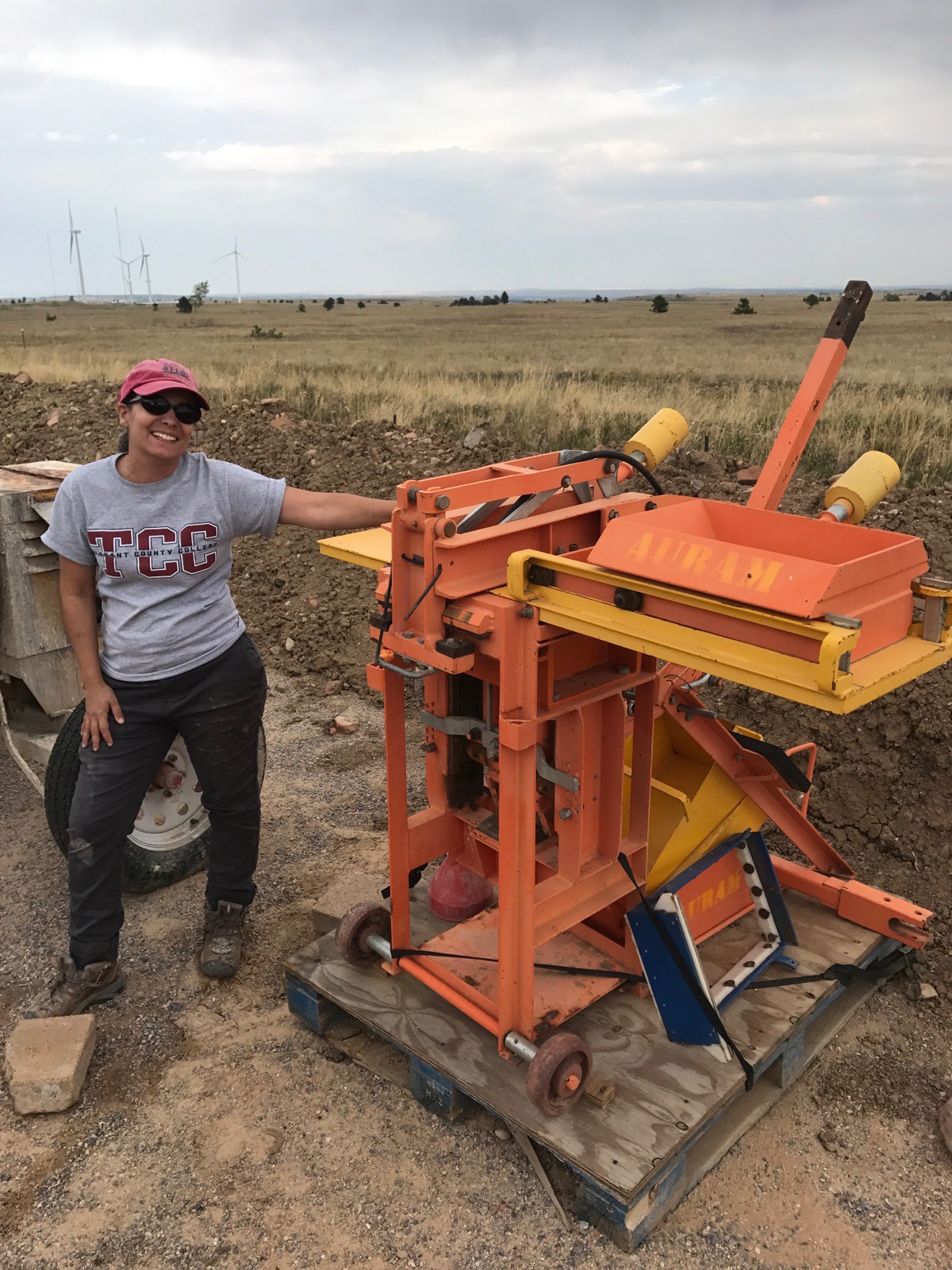

One of the defining features of CEBs is the high compression process used to produce them. Modern pressed earth block production relies on hydraulic or mechanical presses that apply immense pressure to the soil mix, compacting it into dense blocks. This method minimizes voids or air pockets, resulting in superior strength compared to traditional adobe or uncompressed earth materials.
Compressed earth blocks typically have a compressive strength between 900psi - 1800psi, depending on the composition and level of compression, which makes them suitable for load-bearing walls in one or two-story structures. When stabilized, their strength can rise significantly, making them comparable to concrete blocks in certain applications.

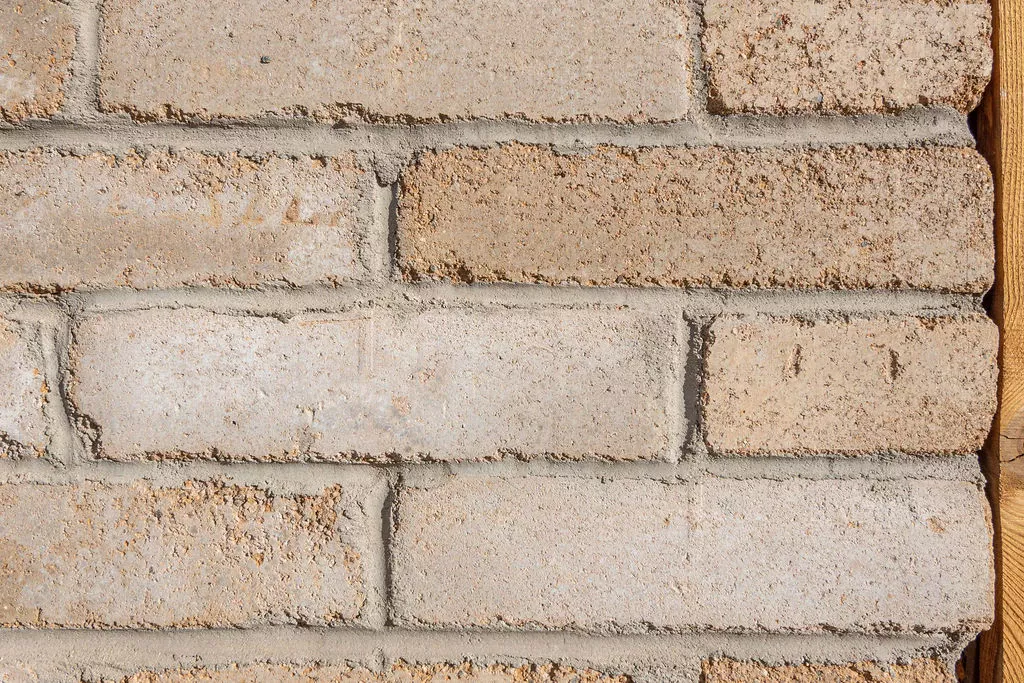

Compressed Earth Block Mortars:
Block & mortar composition & color varies based on local resources and building needs.Several mortar types may be used with compressed earth block (CEB) construction depending on block strength, climate exposure, and structural engineering requirements. Building codes and engineering standards generally allow both earthen and conventional masonry mortars.
• Earthen Mortar -
Some earthen building codes, such as the New Mexico Earthen Building Materials Code (14.7.4 NMAC), allow mortars made from soil that is compatible with the compressed earth blocks. These mortars may use the same soil as the block mix and are typically screened to remove larger aggregates.
• Conventional Lime–Cement–Sand mortars -
The same code also allows conventional masonry mortars conforming to ASTM standards, including Type M, Type S, and Type N mortars. These mortars typically consist of Portland cement, hydrated lime, sand, and water in different proportions depending on the required strength.
• Mortar Strength and Compatibility -
In masonry design, mortar is generally selected to be compatible with the strength of the masonry units. Mortar is often designed to be similar to or slightly weaker than the masonry units so that stresses are distributed through the wall system rather than concentrated in the blocks.
• Slip Mortar and Slurry Joints -
Some earthen construction standards allow slip mortar, a thin mud slurry made from screened soil and water, when compatible with the block material and when adequate adhesion can be demonstrated.
• Engineering and Code Compliance -
Final mortar selection should follow structural engineering specifications and applicable local building codes. In many jurisdictions, earthen masonry construction may reference provisions of the International Building Code (IBC) together with earthen material standards such as those adopted in New Mexico.
As interest in resilient construction grows, compressed earth blocks offer a durable, climate-adaptive alternative to traditional building materials. Earth blocks not only reduce environmental impact but also provide long-lasting structures capable of withstanding severe weather events. With their strength and natural aesthetic, CEBs are increasingly seen as a practical solution for builders looking to balance sustainability with the demands of a changing climate.
Want to learn more about the codes that apply to earth block construction? Explore our in-depth page on earth block codes and standards.
How does building with compressed earth blocks (CEBs) contribute to addressing the sand shortage in construction?
How does building with compressed earth blocks (CEBs) contribute to addressing the sand shortage in construction?
- Reducing the Demand for Natural Sand: CEBs use soil as their main ingredient, which can include overburden fines from quarries or, in some cases, soil right from your building site. This means less reliance on natural sand, which is in high demand for concrete and other construction materials.
- Local Availability and Reduced Transportation: Whether using on-site soils or locally sourced overburden fines, the reliance on nearby materials minimizes the need for long-distance transportation. This results in cost savings for clients and lowers the carbon footprint of the construction process.
- Sustainable Resource Management: Repurposing overburden fines or utilizing on-site soils aligns with principles of a circular economy, turning potential waste into a valuable resource.
